Push-Up Pole
Download BrochureNow you can add multi-lane traffic radar, a video camera or a device of your choosing to any Wanco Full-Size or Mini Message Sign. A simple extension pole mounted to the back of the message sign cabinet lets you deploy installed equipment when you need it. For transport and storage, the pole and installed device are protected when stowed behind the sign cabinet. Power is supplied by the message sign power system. The sign and device operate independently. Retrofit kits are available.
Features
- Quick and easy setup
- Pole extends up to 19 feet from ground
- Pole rotates 360 degrees for optimal positioning
- Retrofit kits for message signs you already own
- Onboard power for installed devices
Push-Up Pole
- Fully extended pole rises 65 inches above top of message sign cabinet
- Pole rotates 360 degrees
- Pole brackets mounted to rigid support frame behind display cabinet
- Pole position locks with two pole clamps
- Easily release clamps to raise, lower and rotate pole by hand
- Clamp tensioning reduces slipping while positioning the pole
- Handle at bottom of pole provides helpful grip for rotating
Camera Option

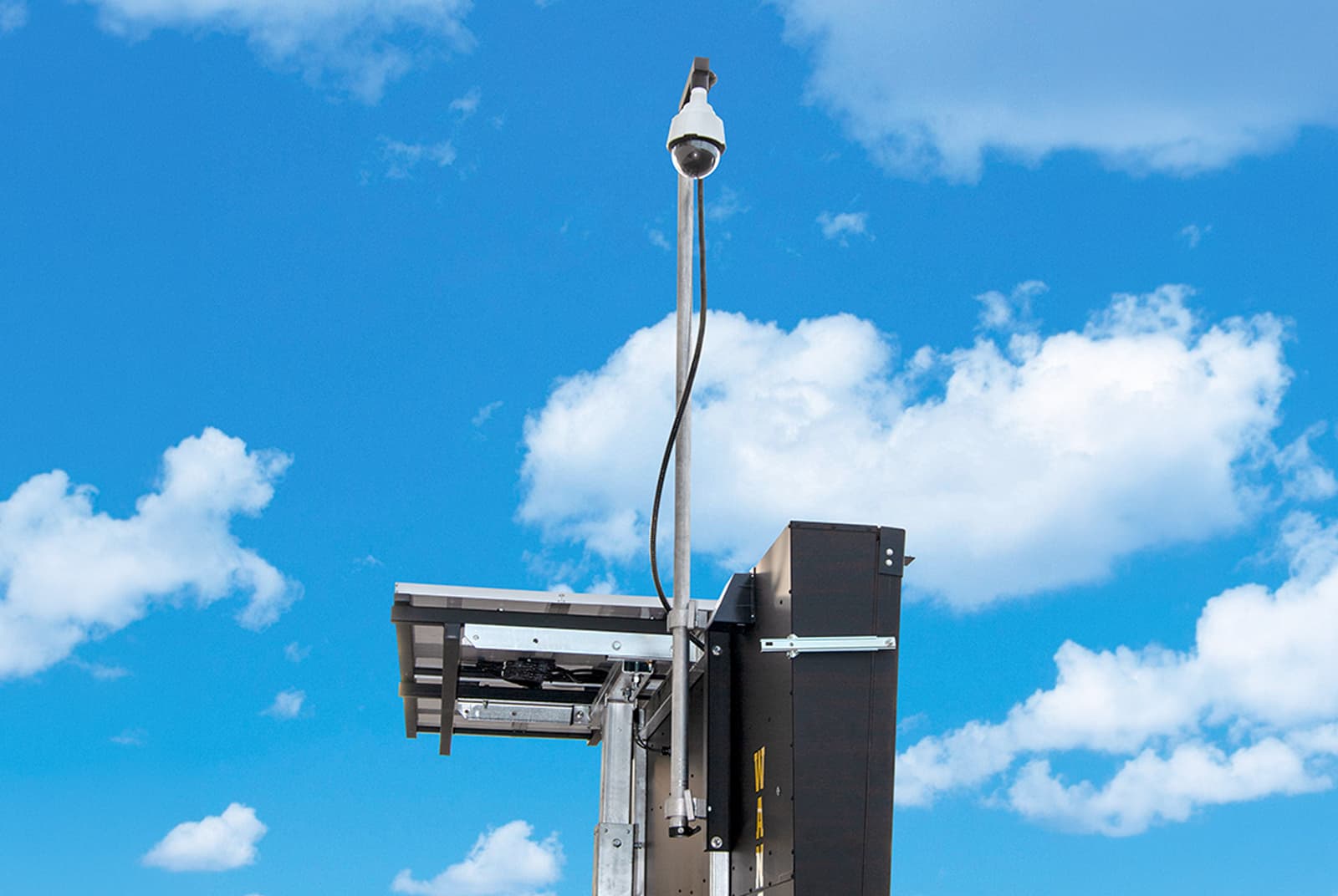

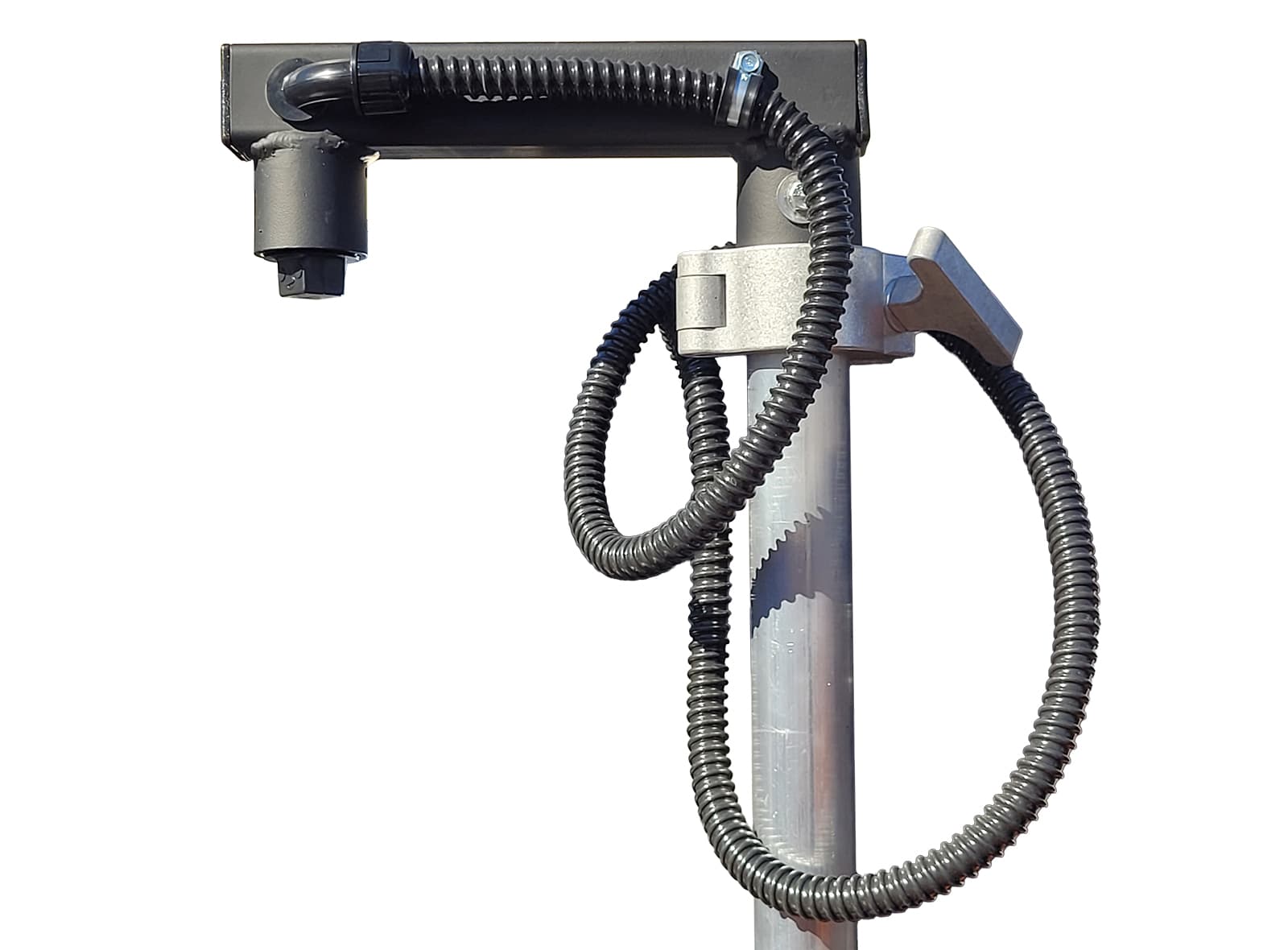

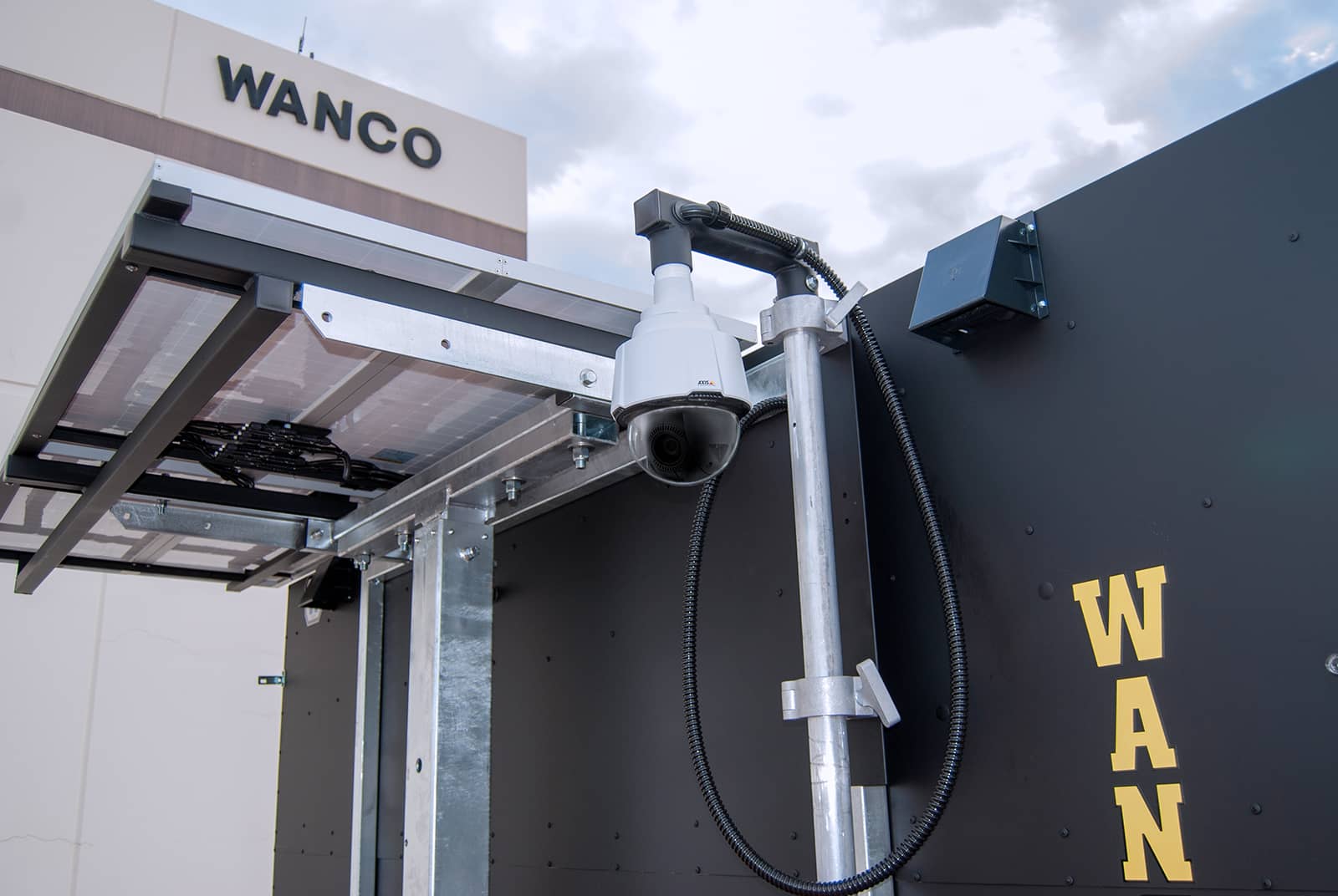

- Outdoor day/night camera installed on pendant bracket at top of pole
- Domed style, pan-tilt-zoom (PTZ) autofocus camera
- Wide 77° field of view
- Cellular modem provides remote access and remote control
- Modem and electronics located inside sign display cabinet
Radar Option

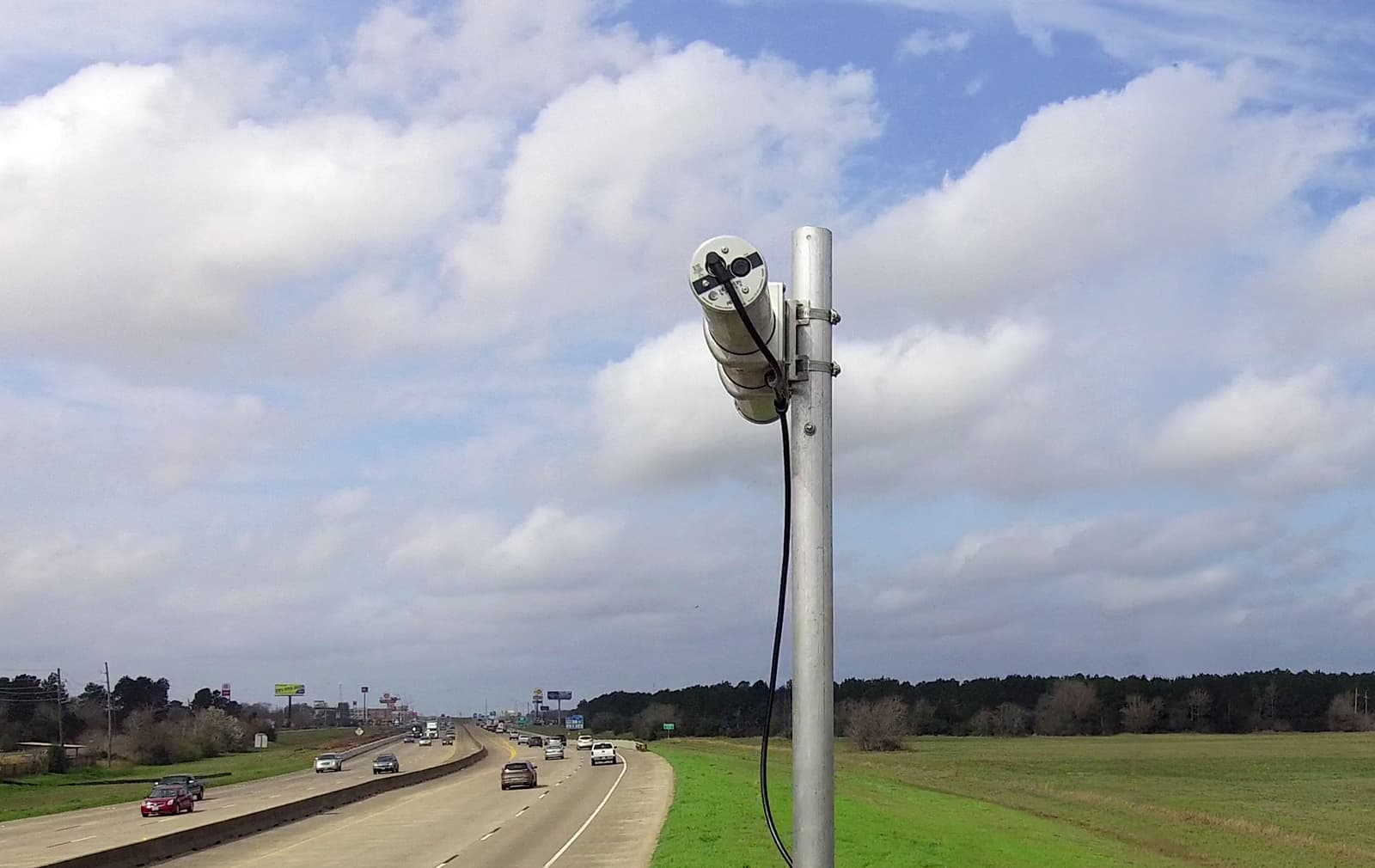

- Multi-lane radar installed just below top of pole
- Dual beam side-fire radar
- Detects lane, speed and class of individual vehicles
- Companion Windows app for setting configuration parameters
- Computes per-lane volume, occupancy, gap, average speed, 85th percentile and headway parameters
- ITS traffic service web-based software and data hosting are optional
- Onboard data storage and microSD (uSD) card expansion slot
- Cellular modem provides remote access and remote control
- Modem and electronics located inside sign display cabinet
System Power
- Camera, radar or other installed device powered by message sign batteries
- Batteries charged automatically by onboard solar-based charging system
- Solar and battery upgrades available for added capacity
Options
Pole kits
- PTZ camera kit¹
- Multi-lane radar kit¹
- Retrofit kit²
Power kits
- Solar upgrade kits
- Battery upgrade kits
- Battery box upgrade
- Charger upgrade
1. Cellular service required for camera and radar options. Some installations may require additional batteries or solar. Please consult factory.
2. Retrofit kits for installation on any Wanco Full-Size or Mini Message Sign with an in-cabinet controller.
Some message sign models do not accommodate retrofits or upgrades. Please consult factory.
Push-Up Pole
Max. extended height
5 ft. 5 in. (1.65 m) above top of cabinet
18 ft. 8 in. (5.69 m) from ground on Full-Size signs
17 ft. 3 in. (5.26 m) from ground on Mini signs
Rotation
360 degrees
Material
2 inch OD aluminum
Clamps
Two heavy-duty round pole clamps bolted to message sign cabinet support frame
Optional Camera Kit
Camera model
Axis P5654-E Mk II / Axis PoE
Type
Dome-style pan, tilt and zoom
Resolution
1080p (1920×1080)
Zoom
21X optical, 12X digital (252X total)
Recording
SD card, user-supplied
Power draw
16W max., 8W typ.
Voltage
12Vdc input, switched from message sign touchscreen controller
Temperature rating
–22 to 122°F (–30 to 50°C)
Optional Multi-Lane Radar Kit
Radar model
Houston Radar SpeedLane Pro
Type
Dual beam side-fire FMCW radar
Measurements
Real-time, per-vehicle, per-lane, speed, lane and class
16 user-defined lanes
Direction
Registers both approaching and departing vehicles
Range
Max. 255 ft. (77.7 m)
Data storage
Internal memory
1,000,000 vehicles
Power draw
2.2W max., 1.2W typ.
Voltage
9 to 28Vdc input, switched from message sign touchscreen controller
Temperature rating
–40 to 167°F (–40 to 75°C)
Certifications
FCC, CE, Industry Canada, NCC, NEMA TS-2, IP66, IEC 61000-4-5 Level 4
Specifications subject to change without notice.
