20kW Light Tower

Download Brochure

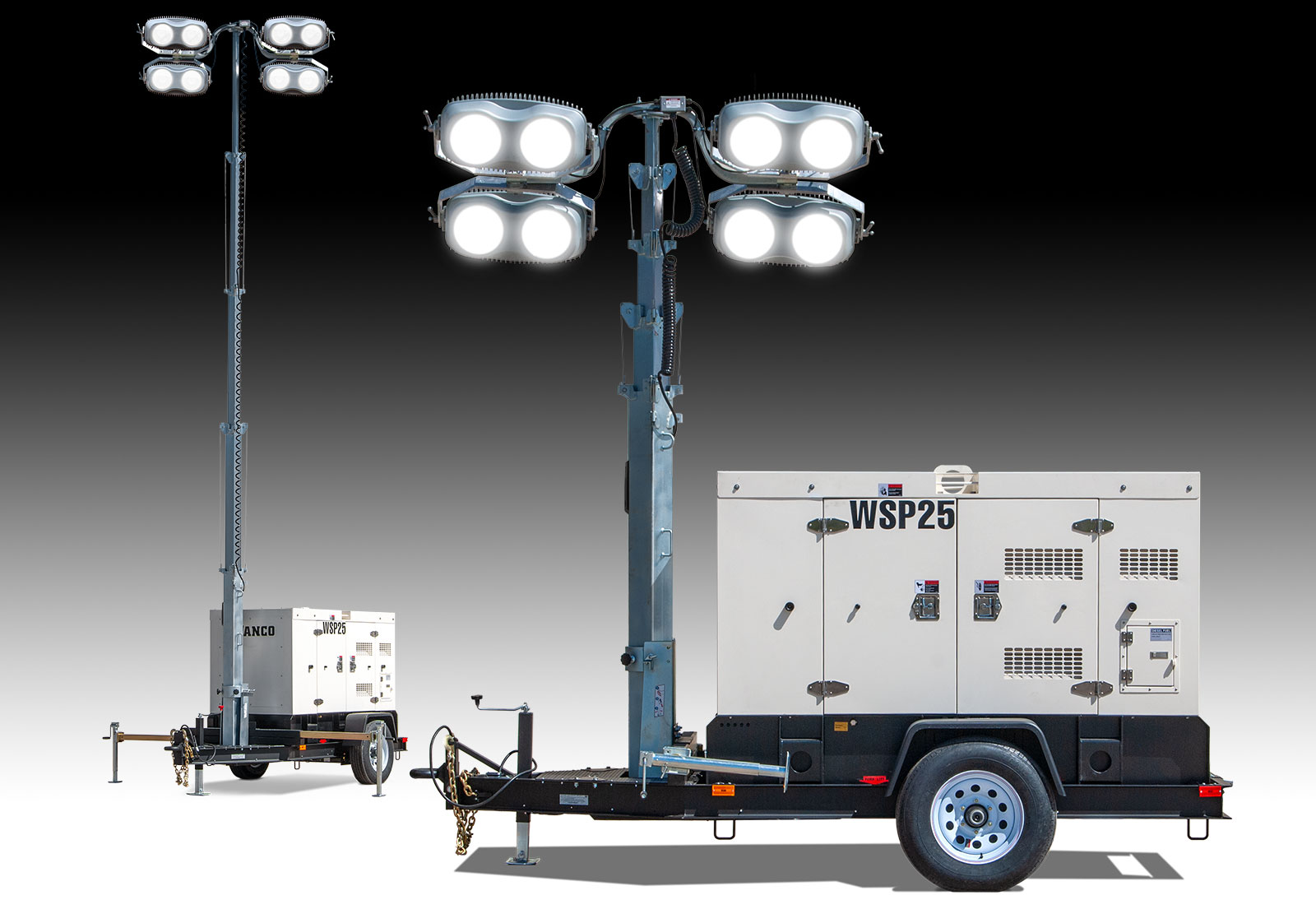

The Wanco 20kW Light Tower is based on our powerful 20kW Mobile Generator. This is by far the most powerful light tower on the market today with more surplus power than any other brand. A true 20 kilowatts, this industrial light tower lights up your work site with plenty of available power for all your field office needs — and it is quieter than a ringing alarm clock. The light tower’s energy-efficient LEDs are brighter than 1000-watt metal halide lights. The generator is plumbed for auxiliary fuel, just hook it up and it will run indefinitely.

See More Detail

LED technology effectively replaces outdated HID flood lights. By design, LEDs have a more controlled, highly directional light distribution, focusing light rather than sending it in all directions. The result is more efficient use of light energy and much lower power consumption. The Wanco 20kW Light Tower optimizes the benefits of LED technology for brilliant illumination and extraordinary fuel savings.

The vertical tower is compact when stored, yet rises to almost 30 feet when deployed. A single electric winch extends the telescoping tower. The tower rotates 358 degrees even when deployed, and each light can be aimed individually without tools. The lights operate at any height.

The power system features a rugged Flex Tier 4i diesel engine and high-quality four-pole generator. An extra-large fuel tank provides extended run times, and an electric fuel gauge provides fuel level via the engine controller.

Exceptional power efficiency and fuel savings create a smaller carbon footprint compared to other typical light towers. Low fuel consumption not only lengthens run times, it greatly reduces refueling and overall maintenance costs. Built-in fluid containment protects against ground contamination from leaks, spills and drips.

Features

  • 200,000 lumens with LED fixtures
  • Telescoping vertical tower
  • True 25kVA/20kW industrial generator
  • Switchable 3-phase/1-phase power
  • Connections for auxiliary fuel tank

Lights and Tower

  • Full-spectrum 6500K daylight is less artificial-looking and easier on the eyes
  • Instant-on and immediate full intensity — no warm-up or cool-down, never any waiting
  • 50,000-hour LED lifespan reduces maintenance, never replace a light bulb

Comparison of Long-Run LED vs Metal Halide Lifespan

  • Industrial-grade fixtures are heavy-duty, rugged and extremely durable
  • Metal halide light configuration is optional
  • Large step-up platform for adjusting light fixtures
  • Aim lights without tools
  • 358-degree tower rotation from the ground
  • Lights operate at any height

Power System

  • Perkins Flex Tier 4i heavy-duty diesel engine, 4-cycle, indirect injection
  • Enlarged fuel cell for maximum run times
  • Oversized alternator with PMG for superior starting
  • Dual-containment fuel cell and environmental containment basin
  • Sound attenuation for superior noise reduction
  • Voltage adjusting rheostat
  • Multi-voltage switch
  • Emergency-stop switch located on outside of enclosure

Construction

  • Fully lockable enclosure including doors and fuel fill
  • Heavy gauge steel enclosure, powder-coated for durability and long life
  • Insulated closed-cell and baffled noise reduction
  • Torsion axle for superior towing

Options

  • Metal halide lights
  • Auto-start/stop system
  • Cold-soak prevention system
  • Ball tow hitch
  • Electric brakes

Some options may not be available for aftermarket installation. Please consult factory.

Specifications

Construction

Trailer

Welded structural steel

Finish

Oven-baked powder coating

Tow hitch

Heavy-duty lunette ring for 3-inch pintle hook

Tires

ST225/75R12

Lights

Lamps

Four LED fixtures

Wattage

400 W per fixture

Luminosity

50,000 lumens per fixture
200,000 lumens total

Output power

Standby rating

27 kVA / 22 kW

Prime rating

25 kVA / 20 kW

Voltages

120/240
120/208
277/480

Frequency

60 Hz

Voltage regulation

±0.5%

Power system

Engine type

4-cylinder, 4-stroke, Tier 4i Flex indirect injection diesel

Engine speed

1800 rpm

Generator type

Brushless

Generator insulation

H

Generator wattage

22 kW

Battery

12 Vdc 950 CCA

Displacement

2.2 L

Sound level, max. load

59 dBA @ 23 feet (7m)

Fuel tank capacity

60.7 gal. (229.7L)

Specifications subject to change without notice.
