International Message Signs

WEMB

Download Brochure

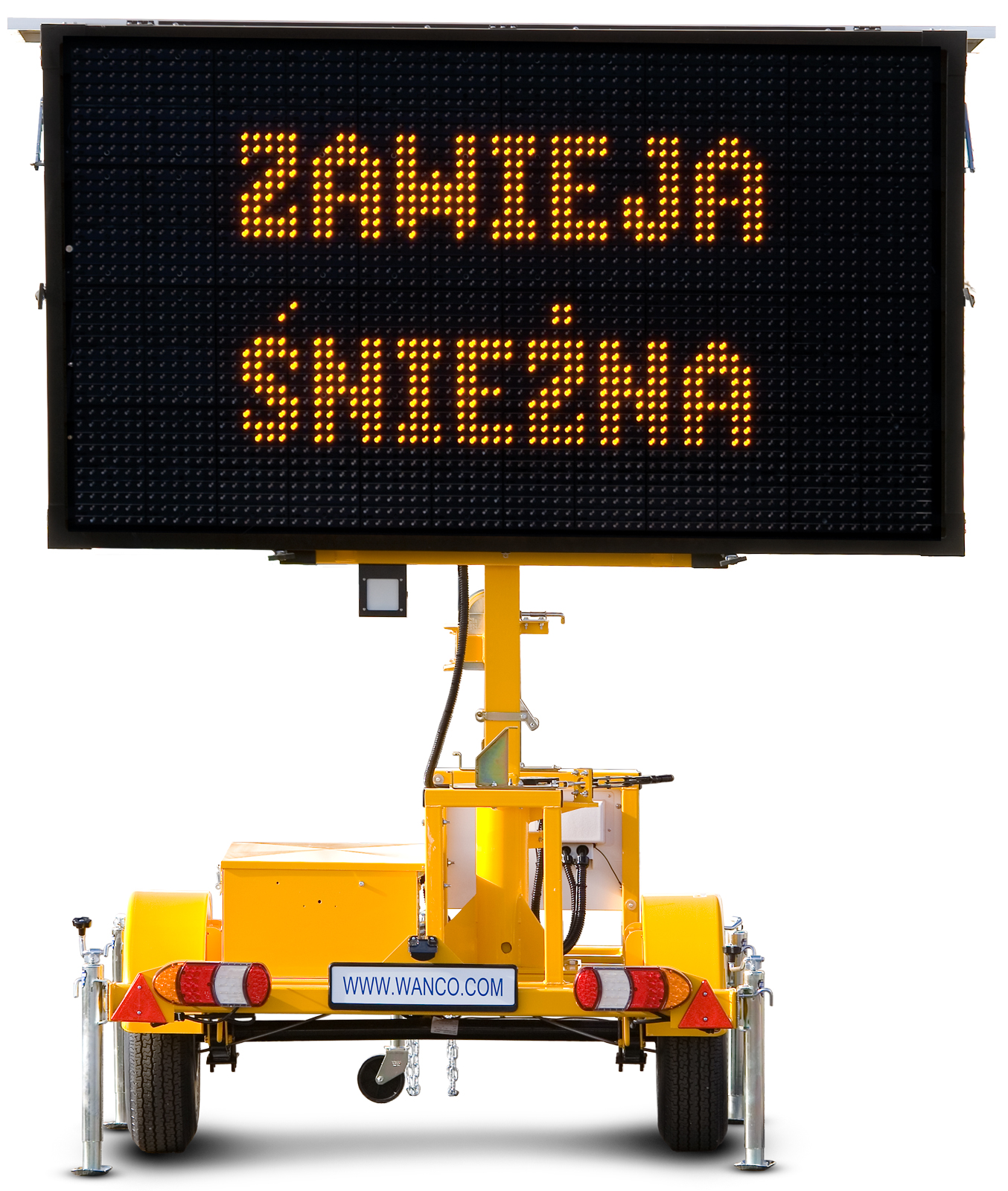

Wanco International Message Signs are available with multiple languages. The dense field of pixels in our highly reliable full-matrix display ensures high legibility, even with non-Latin alphabets. The display features bright, high-efficiency LEDs for outstanding legibility and visibility with reduced energy consumption and superior performance. Messages are presented as text, graphics or both for traffic safety, emergency response or any application.

Features

  • Bright, highly legible full-matrix display
  • Messages displayed in local language
  • Energy efficient, clean and silent power
  • Simple to programme
  • Durable powder-coat finish resists the elements

Setup

  • Ranging in weight from 745 to 800 kg (depending on power system), can be towed by most vehicles
  • Standard tow hitch for easy transport includes wheel on tongue-jack for hand positioning
  • Heavy-duty hand-operated winch with safety brake allows one person to raise message board
  • Tower rotates 360 degrees for optimal positioning
  • Single disc brake holds board in place during operation, and a cradle supports and holds board in travel position
  • Steel battery box limits access and enhances security

Operation

  • Onboard controller, no laptop required
  • Full-color touchscreen controller with high-resolution display
  • Multi-level password protection limits access to control software
  • Preprogrammed text messages, symbols and graphics
  • Language options include Arabic, English, French, Polish, Russian, and Spanish
  • Internal clock facilitates built-in schedule programming
  • Control box can be locked to prevent unauthorized access
  • Optical lenses and sunshades increase visibility and performance

Power System

  • Energy-efficient operation results in long run times
  • Solar panels charge batteries automatically without intervention
  • Charging system shuts down when batteries are fully charged, preventing damage
  • Unique system allows battery charging with solar panels or commercial power
  • Battery box can be locked to prevent unauthorized access

Maintenance

  • Individual display modules can be replaced easily
  • Vibration isolation mounts protect display modules
  • Standard 15-inch tires
  • Bolt-on fenders can be replaced if damaged
  • Durable powder-coat finish resists the elements and is UV-resistant
  • Welded steel construction reduces maintenance

Standards Compliance

  • CE compliant

Options

Display language

  • Arabic text
  • English text
  • French text
  • Polish text
  • Russian (Cyrillic) text
  • Spanish text

Power

  • Choice of battery configurations
  • Additional solar

Other options

  • Hydraulic lift for message board
  • High-security battery box

Some options may not be available for aftermarket installation. Please consult factory.

Specifications

Weight

Northern regions

Approx. 800kg

Southern regions

Approx. 743kg

Construction

Trailer frame

MIG-welded tubular steel

Fenders

Bolt-on fenders

Sign cabinet

Aluminium sheet

Tires

195/70R15

Display

Pixel matrix

Full matrix 72 wide × 40 high, 34.3 mm pitch
240 mm equivalent height

LED display colour

Class C2

Message display

From 1 to 4 lines of text
Up to 10 characters wide
Size range C

Programming

Interface

178 mm capacitive touchscreen
Menu-based system
Integrated lockable control box

Message memory

255 user-programmable messages
94 preprogrammed messages
94 message sequence display

Optional languages

Arabic, English, French, Polish, Russian, Spanish

Power system

Power supply

12 Vdc battery powered with automatic solar charging system

Environmental impact

No exhaust emissions

Batteries

450 or 900 Ah battery-bank capacity, depending on region

Solar

One or two 130 W solar panels, depending on region

Charging

45 A battery charger, 220 V input

Battery life

Autonomous battery-only operation of 30 days

EU directives

Compliance

CE compliant

CE durability

T2 D2 P2

specification image

Specifications subject to change without notice.
