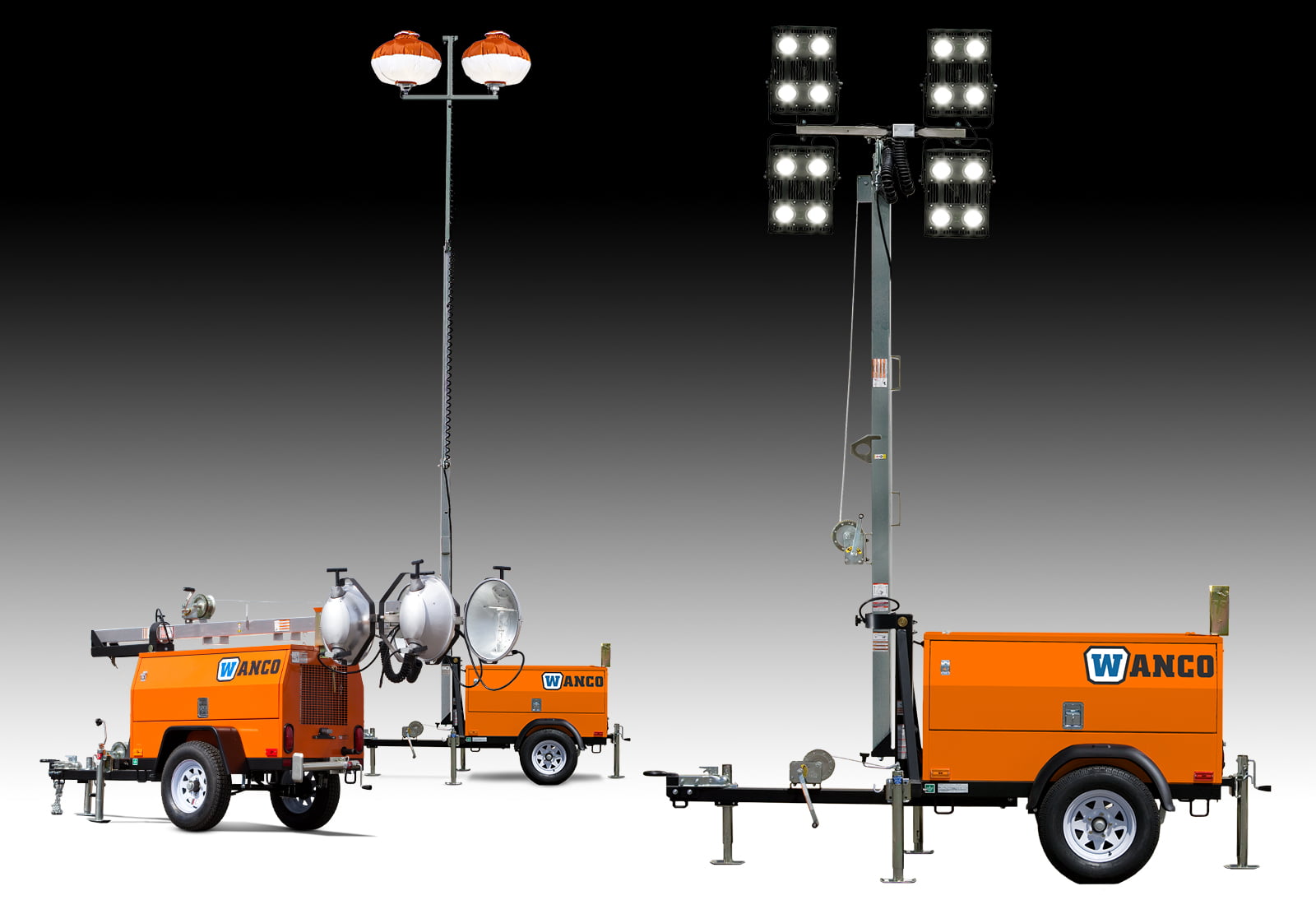

Wanco Diesel Laydown Light Towers have been the go-to light tower for more than 40 years. Featuring a telescoping tower that lies flat for low transport and storage height, the tower rises to 30 feet when deployed. State-of-the-art technology provides superior illumination with a choice of LED fixtures, metal halide or balloon lights. For fast job-site setup, each light fixture can be aimed independently without the use of tools—and the fixtures stay in place once positioned.
Features
- High-output light fixtures
- Telescoping tower rotates nearly 360 degrees
- Choice of low-speed engines
- Heavy gauge all-steel body
- Maintenance panel for engine access
Performance
- High-efficiency light fixtures keep maximum light on the job longer, increasing safety
- Durable fixtures ensure longevity and dependability
- Two outriggers and four leveling jacks provide stability
- Tier 4 Final diesel engine includes glow-plug preheat system for improved cold-weather starting
- Fuel capacity of 30 gallons provides extended run times up to 120 hours with Wanco’s exclusive LED light fixtures
Convenience
- Rotating tower reduces the need to frequently move the trailer
- Lockable, weather-resistant, steel cabinet protects engine and electrical components from the elements
- Control panel features hour meter, a choice of convenience outlets for powering external equipment, and circuit breakers for on/off functionality and protection
- Automatic shutdown system protects engine from damage due to low oil pressure and high coolant temperature
- Translucent polyethylene fuel tank provides instant view of fuel level, eliminating the need for a fuel gauge
- Exclusive hinged top panel provides unimpeded access to engine, generator and electrical components
Options
Lights
- 350W LED
- 480W LED
- 1000W metal halide
- LED balloon lights
Tower lift
- Dual power winches
Power system
- 6kW
- 8kW
- 50Hz
Engine
- Kubota
- Mitsubishi
Transport
- Heavy-duty axle
- Torsion axle
- 2-inch ball hitch
- Lunette ring for pintle hook
Other options
- 240V twist-lock receptacle
- Cold-weather start package
- Auto start/stop system
- Emergency-stop button
Some options may not be available for aftermarket installation. Please consult factory.

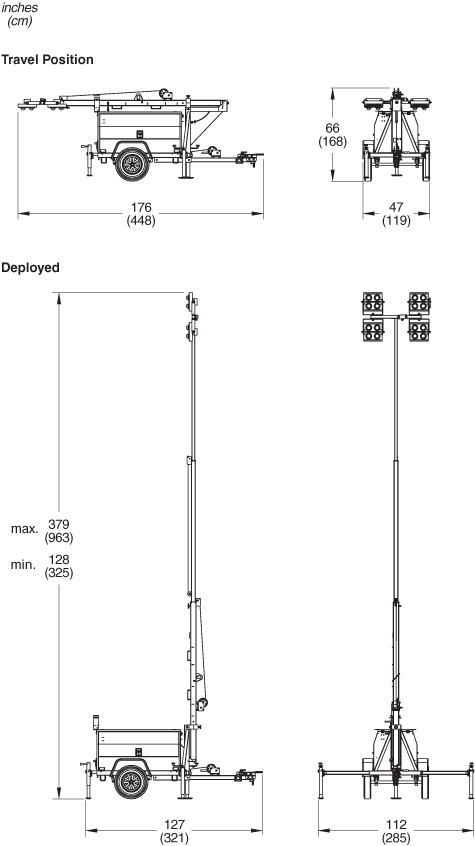

Weight
Operating
Approx. 1800 lbs. (815kg)
Shipping
Approx. 1550 lbs. (703kg)
Construction
Trailer
MIG welded, unibody-style
Cabinet
Bolted all-steel construction
Finish
Oven-baked powder coating
Tow hitch
Combo-hitch for 2-inch ball or 2 1/2-inch pintle hook
Tires
ST175/80D13

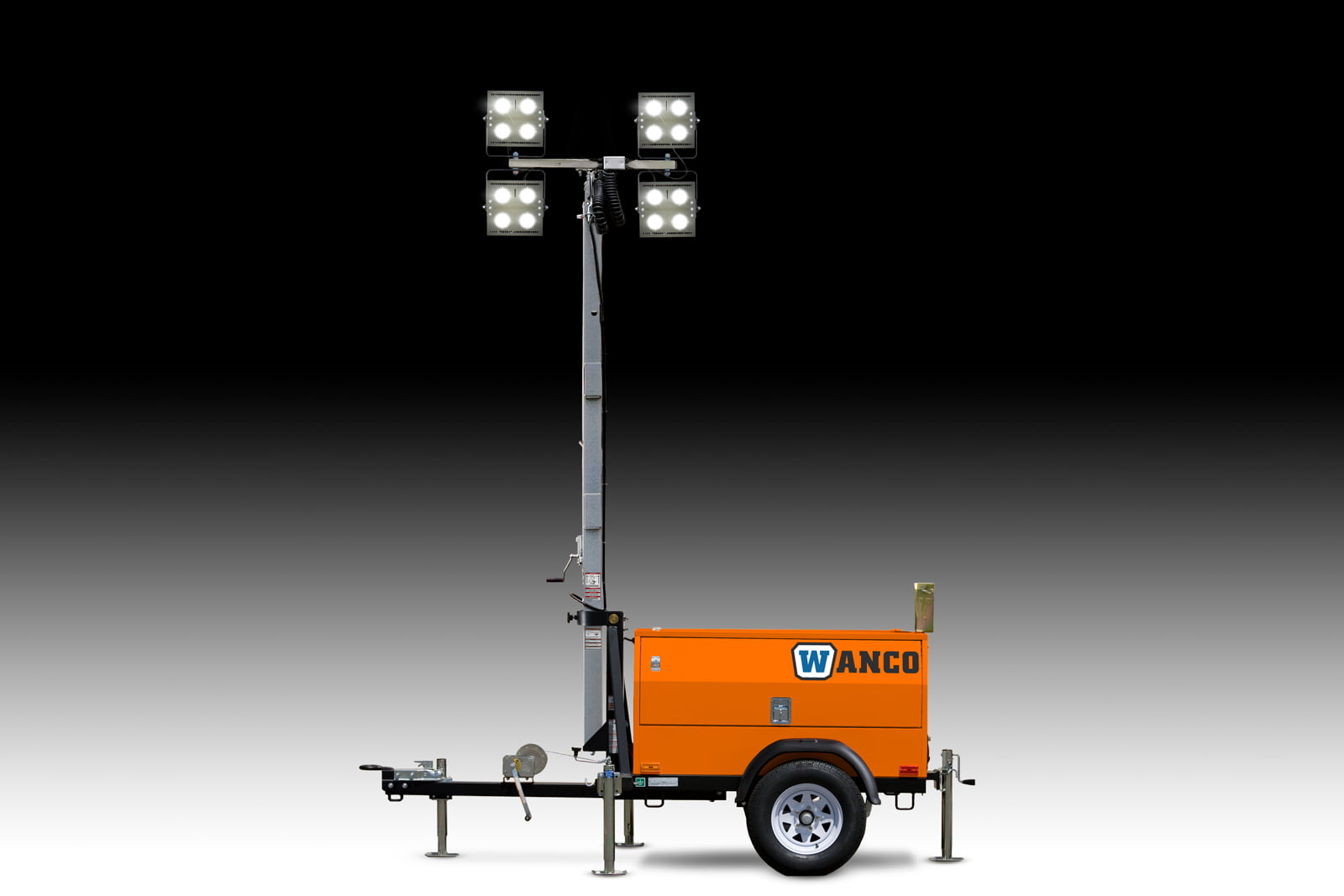

Lights* — 350-watt LEDs
Fixtures
Four 350 W LED fixtures
Luminous flux
56,778 lm per fixture
227,112 lm total
Coverage**
27,457 sq ft (2551 m²)
0.6303 acre
Lights* — 480-watt LEDs
Fixtures
Four 480 W LED fixtures
Luminous flux
74,529 lm per fixture
298,116 lm total
Coverage**
27,864 sq ft (2589 m²)
0.6397 acre
Lights* — Metal halide
Lamps
Four 1000 W metal halide lamps
Luminous flux
86,850 lm per lamp
347,400 lm total initial intensity
Coverage**
38,137 sq ft (3543 m²)
0.8755 acre

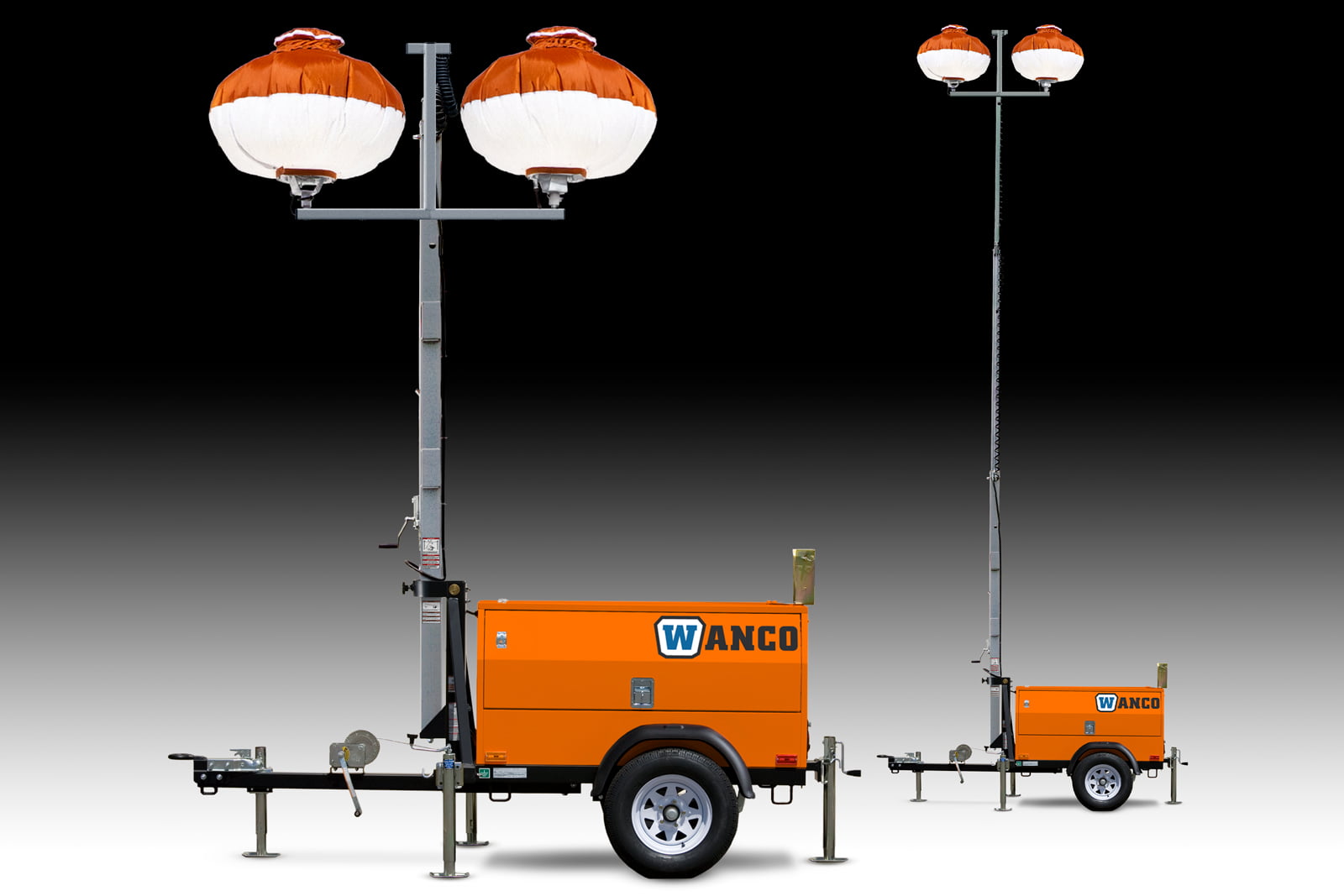

Lights* — LED balloon lights
Fixtures
Two 650 W LED balloon lights
360-degree beam angle
Luminous flux
65,000 lm per balloon
130,000 lm total
Coverage, ≥0.5 fc
14,080 sq ft (1308 m²)
0.3233 acre
Output power
Output*
6 kW or 8 kW
Voltage*
120 V or 240 V
Amperage
50 A @ 120 V
25 A @ 240 V
Frequency*
60 Hz or 50 Hz
Voltage regulation
±6%, no load to full load
Power system
Engine type
Tier 4 Final diesel, 3-cylinder, 4-cycle, liquid-cooled
Engine speed*
1800 rpm @ 60 Hz or
1500 rpm @ 50 Hz
Generator type
Brushless, class H
Generator wattage*
6 kW or 8 kW
Battery
12 Vdc, 550 CCA
Max. power output*
Mitsubishi L3E: 12.2 hp (9.1 kW)
Kubota D1005: 13.1 hp (9.8 kW)
Kubota D1105: 15.4 hp (11.5 kW)
Displacement*
Mitsubishi L3E: 58.09 in³ (952 cm³)
Kubota D1005: 61.08 in³ (1001 cm³)
Kubota D1105: 68.53 in³ (1,123 cm³)
Sound level, max. load
71 dB @ 23 ft (7 m)
Fuel tank capacity
30 gal (114 L)
Fuel consumption*
0.25 to 0.49 gal/hr (0.096 to 1.86 L/h)
Runtime before refueling*
350W LEDs: approx. 120 hrs
480W LEDs: approx. 97 hrs
Metal halide: approx. 62 hrs
*Depending on model.
**Total coverage ≥ 0.5 fc with lights at 30 feet and fixtures tilted 15° down from vertical.
Specifications subject to change without notice.
