Wanco Truck-Mount Arrow Boards provide the ideal solution for convoys, crash-cushion (TMA) trucks and emergency repair crews. Available in four sizes, with the same features as our trailer-mount models, Wanco’s proprietary LED design provides wide angularity and superior visibility. Wanco also has the largest selection of mounting options available for truck‑mount arrow boards. Solar charging is optional.
Features
- Easy to operate and maintain
- High-output LEDs provide superior visibility
- 13-, 15- and 25-light models
- 5, 7 or 12 arrow display modes see control panel photos
- Positive-drive voltage system applies power to lamps only when lit
- Optional automatic dimming
- Flash rate of 30–40 per minute
- Numerous sizes and mounting options
- Integrated battery power with solar charging is optional
- Durable finish resists the elements
- Meets MUTCD
Display Patterns
Options
Display
- 13-light, 5 patterns (small board only)
- 15-light, 5 patterns
- 15-light, 7 patterns
- 25-light, 12 patterns
Board sizes — inches (cm)
- 24 × 48 (61 × 122)
- 30 × 60 (76 × 152)
- 36 × 72 (92 × 183)
- 48 × 96 (122 × 244)
Power
- Battery power with solar charging
Communications
Some options may not be available for aftermarket installation. Please consult factory.
Mounting Options
- Manual-tilt (auto-lock) frame Model WFB
- 180-degree power-tilt frame Model WFP180B
- 90-degree power-tilt frame Model WFBP
- Low-profile power-tilt frame Model WLP90B
- Tailgate bracket Model WVGB
- Truck bed mount
- Customer-supplied mounting Model WB

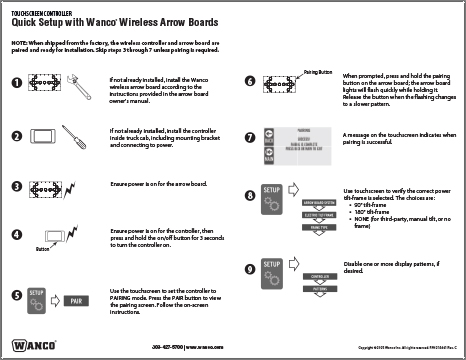

Wireless Controller Quick Setup Guide
Latest product documents only. For older product documentation, please contact our customer service department.
| Board size inches (cm) | Lamp qty. | Lamp size | MUTCD type | Min. legible distance miles (km) |
|---|---|---|---|---|
| 24 × 48 (61 × 122) | 13 | PAR 36 | A | 0.5 (0.8) |
| 30 × 60 (76 × 152) | 15 | PAR 36* | B | 0.75 (1.2) |
| 25 | PAR 36 | B | 0.75 (1.2) | |
| 36 × 72 (92 × 183) | 15 | PAR 46 | B | 0.75 (1.2) |
| 25 | PAR 46 | B | 0.75 (1.2) | |
| 48 × 96 (122 × 244) | 15 | PAR 46 | C | 1 (1.6) |
| 25 | PAR 46 | C | 1 (1.6) | |
| *PAR 46 optional | ||||
Construction
Arrow board material
Aluminum sheet and welded channels
Coating
Powder-coated and oven-baked
Electrical
Wiring
Arrow board connects to controller with a single weatherproof cable Cable is hard-wired to arrow board, plug-in wiring connector at controller
Cable length
15 ft. (4.57 m) standard; custom lengths available upon request
Power
Arrow board display, controller, and optional actuator are all powered by vehicle alternator system
Specifications subject to change without notice.
