Trucks Entering Highway

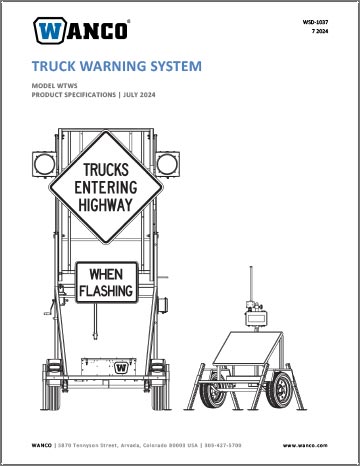

Download Brochure

The Wanco Trucks-Entering-Highway Warning System (TWS) is a portable, automated, real-time system that notifies drivers when construction vehicles are leaving a worksite and entering the highway. This intelligent traffic system acts as a precautionary measure to keep drivers and construction workers safe by avoiding potential collisions.

See More Detail

When slow-moving construction vehicles enter the roadway from a worksite, they present a significant hazard to fast-moving traffic, as drivers may not have time to slow down or change lanes in time to avoid a collision. The Truck Warning System helps prevent collisions and injuries by warning drivers in advance, giving them time to take action.

The Wanco TWS consists of two pieces of equipment that are paired electronically prior to deployment — a sensor trailer, and a beacon trailer with regulatory signs. The sensor detects when construction vehicles are approaching the highway from the worksite, and sends a command to activate the flashing beacons. The beacon trailer is located up the roadway so drivers have enough advance warning and distance to slow down or change lanes before they reach the merging traffic.

The two trailers communicate wirelessly using a radio frequency transmitter and receiver. No cellular connection is needed between the trailers. Two models of sensor trailers use different methods for vehicle detection, either a pneumatic hose or side-fire radar.

Each trailer has independent onboard power, supplied by batteries that are charged by an automated solar-based charging system. Low power consumption ensures reliable performance for long-term deployments. The system can be deployed just about anywhere for any duration. No infrastructure is needed when using the system. Both trailers are portable, easy to transport and simple to deploy.

The system is connected in real time to the Wanco Fleet Manager service via cellular modem. The system logs each detection event, and this data and more can be accessed remotely using Fleet Manager. The TWS operates independently from Fleet Manager, continuously monitoring and warning drivers even if the cellular signal is interrupted. Fleet Manager can also be used to remotely configure various system settings, including setting the flashing duration and manually switching the flashing beacons on or off.

Features

  • Portable system—no infrastructure investment
  • Fully automated vehicle detection and logging
  • RF transmission to dedicated receiver
  • Near-zero latency
  • Easy to deploy

Benefits

  • Prevent collisions and save lives
  • Advance notice lets drivers to take action early
  • Autonomous operation
  • Real time remote access with Wanco Fleet Manager
  • Minimal maintenance

Setup

  • Portable system is easy to transport and deploy
  • Wireless pairing with a button on each trailer
  • Heavy-duty hand-winch with safety brake raises regulatory signs for deployment
  • Single locking device holds signs frame in place while operating and during transport

Operation

  • Beacons flash to warn drivers of trucks entering the traffic flow
  • Flashing beacons and large user-supplied signs ensure high visibility
  • Fleet Manager provides remote preset of flashing duration
  • Fleet Manager provides remote control for continuous flashing on/off
  • Pneumatic hose sensor is durable, reliable, and easy to deploy
  • Radar sensor uses nonintrusive K-band radar
  • Weather-resistant control box has lockable door panel

Power system

  • Energy-efficient performance for long run times and autonomous operation
  • Battery powered and solar charging
  • Solar panels charge batteries automatically without intervention
  • Charging system shuts down when batteries are fully charged, preventing damage
  • Unique system allows battery charging with solar panel or shore power
  • Cooling fan protects battery charger from overheating
  • Beacon trailer battery box can be locked to prevent unauthorized access
  • Sensor trailer battery box is bolted closed to deter tampering

Maintenance

  • All-welded structural steel frame ensures durability and long life
  • Durable powder-coat finish resists the elements
  • Control box can be quickly and easily replaced
  • Standard trailer tires
  • Bolt-on fenders can be replaced if damaged

Options

Power

  • Choice of battery types and configurations
  • Additional solar
  • 45-amp battery charger

Tow hitch

  • Combo-hitch for 2-inch ball and 2 1/2-inch pintle hook
  • Standard lunette ring for 2 1/2-inch pintle hook
  • Heavy-duty lunette ring for 3-inch pintle hook

Other options

  • High-security battery box
  • Wheel lock

Some options may not be available for aftermarket installation. Please consult factory.
