Compact Speed Trailer for Public Safety

WSDT3-SPD

Download Brochure

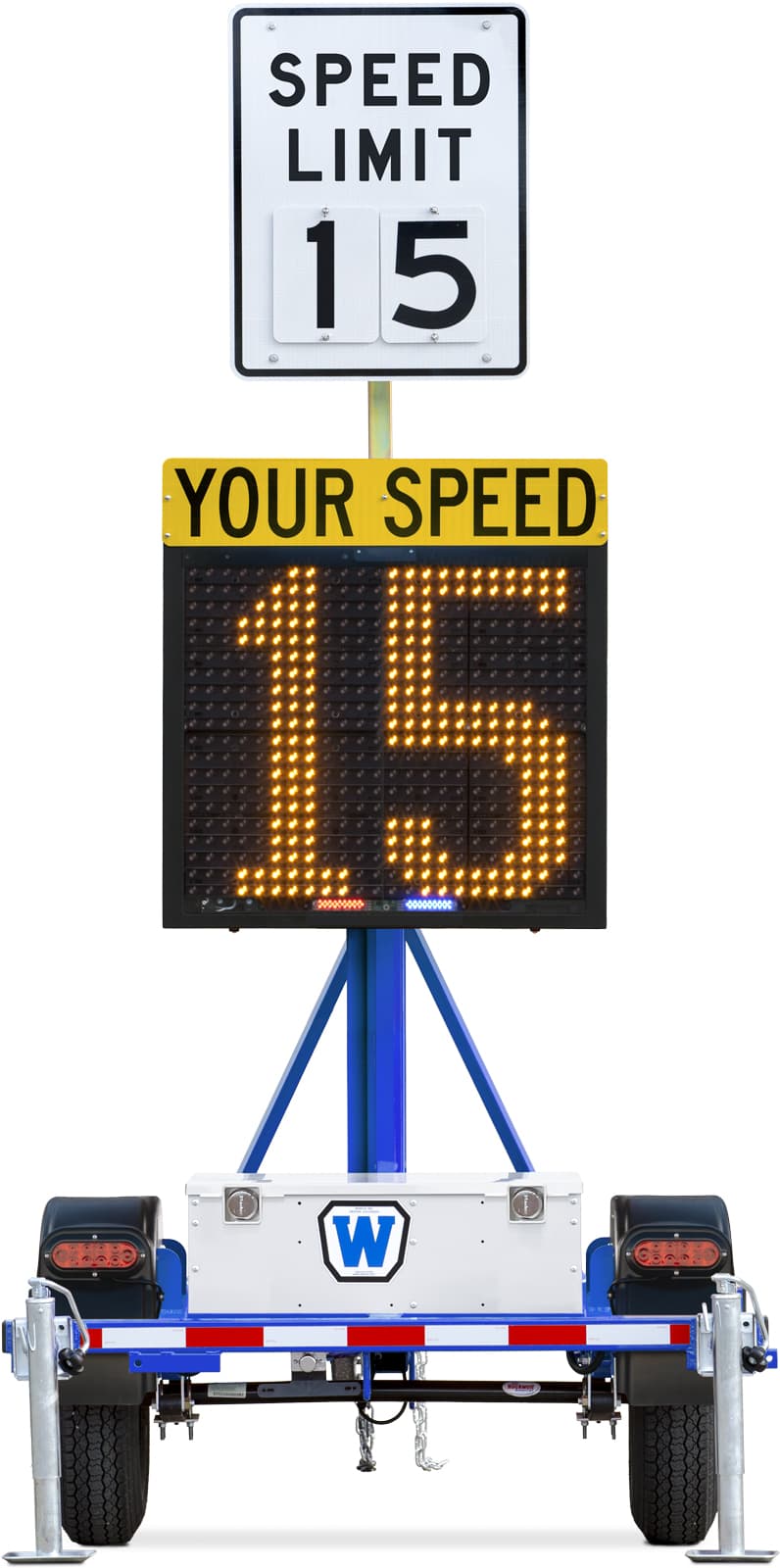

Wanco’s Compact Speed Trailer for Public Safety has the largest portable speed sign available today. Designed for public safety and law enforcement agencies, the giant display shows vehicle speed in bold 26-inch characters, warning motorists to slow down by flashing their excessive speed. The trailer’s see-through design puts pedestrians in view, improving their safety — particularly in high-risk areas. The automated solar charging system provides long run times.

Features

  • Extra-large full-matrix display
  • Optical lenses and sun shades over 26-inch LED characters
  • Selectable speed-limit setting
  • Clearly displays speed in up to three digits
  • Configurable speed units, mph or km/h
  • Configurable flashing excessive-speed message
  • Highly visible red-and-blue LED strobes flash on extreme vehicle speed
  • 24 × 30-inch regulatory speed-limit sign included, other sizes available
  • Regulatory sign has changeable speed-limit numbers
  • Approach-only K-band radar measures speeds from 5 to 150 mph (8 to 240 km/h) at a distance of up to 1000 feet (305 meters)
  • Radar unit is CE compliant, FCC approved
  • Streamlined see-through design
  • Compact and easily portable, 5-minute setup
  • Battery powered and solar charging
  • Silent operation
  • Under 900 pounds (400kg), can be towed by most vehicles
  • Drawbar can be removed for added security and smaller footprint
  • Standard 2-inch ball coupler tow-hitch
  • Locking control box and battery compartment

Options

Power

  • Choice of battery types and configurations
  • Additional solar
  • 45-amp battery charger

Tow hitch

  • Combo-hitch for 2-inch ball and 2 1/2-inch pintle hook

Accessories

Other options

  • Touchscreen controller
  • Large speed limit sign
  • White LED flashers
  • High-security battery box
  • Wheel lock

Some options may not be available for aftermarket installation. Please consult factory.

Documents

Latest product documents only. For older product documentation, please contact our customer service department.

Specifications

Download Full Specs
Weight

Approx. 870 lbs. (395 kg)

Construction

Trailer

MIG-welded steel tubing

Speed-display cabinet

Aluminum sheet construction
Dust- and weather-resistant, comparable with NEMA 4 (IP54)

Coating

Powder-coating and oven-baked

Sign

Aluminum sheet

Tires

ST205/75D13

Power

Batteries

One 12Vdc 4D AGM battery

Battery capacity

200 Ah total

Solar panel

One 65 W panel

Regulatory sign

Size, standard sign

24 × 30 inches, W × H

Size, optional sign

36 × 36 inches

Material

Aluminum sheet, 0.080" (2mm) thick, with high-intensity reflective coating

specification image

Specifications subject to change without notice.
