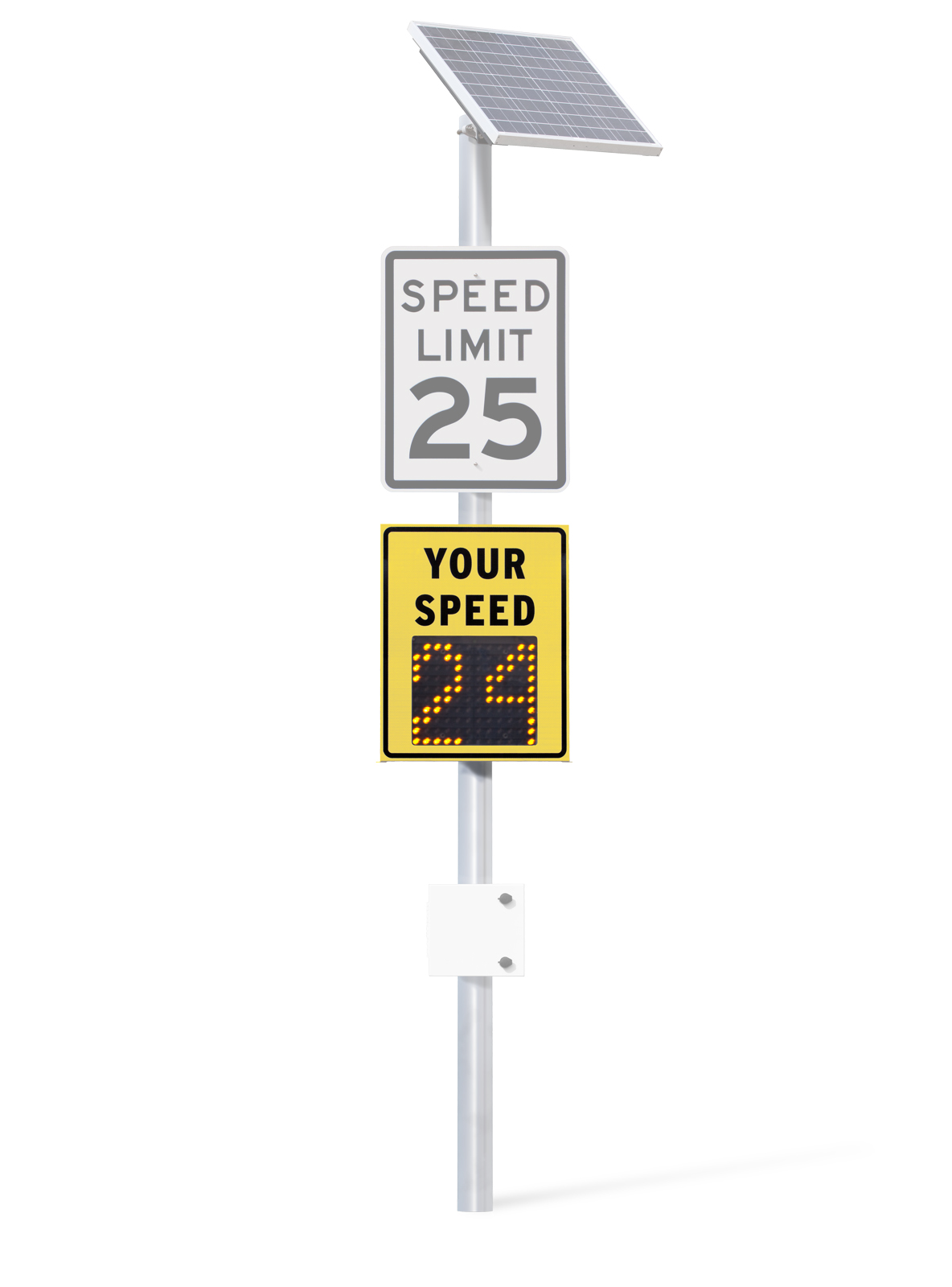

Wanco Pole Mount Radar-Speed Signs show vehicle speed and warn motorists to slow down by flashing their excessive speed. They are often deployed in school zones, neighborhoods and accident-prone areas — locations where obeying the speed limit is critical. Wanco offers two sizes of electronic LED speed displays for small and large roads. The signs can be either hard-wired to commercial power or battery-powered with an automatic solar-based charging system.
Features
- Configurable speed settings
- Ideal for school zones and speed-sensitive areas
- Choice of display sizes — 13-inch or 26-inch character size
- LED visors produce superior visibility
- Battery or AC powered
Setup
- Selectable speed limit setting
- Configurable, flashing excessive-speed message
Operation
- Electronic speed display with full matrix of LEDs
- Lenses and shades over LEDs produce superior visibility
- Permanent pole-mount at any height
- Display flashes when a vehicle exceeds speed limit
- Clearly displays speed in up to three digits
- Radar unit is CE compliant, FCC approved
- Weather-resistant control box cover has lockable latches
Power system
- Hard-wired to commercial power or battery-powered with solar charging system
- Energy-efficient operation
- Solar panel charges batteries automatically without intervention
- Charging system shuts down when batteries are fully charged, preventing damage
- Locking battery box prevents unauthorized access
Maintenance
- Display modules can be replaced easily
- Display cabinet door stays open during maintenance
- Durable powder-coat finish resists the elements
Options
Controller
- Touchscreen controller
Display
- Small sign
- Large sign
Flashers and beacons
- Red-and-blue flashers
- White flashers
- Caution beacons
System
- Choice of R2-1 regulatory signs
- Choice of mounting brackets
- Aluminum pole, 4-inch diameter (4 1/2-inch OD), 14 feet tall, with pedestal base
Accessories
- Modem/GPS package
- Traffic Data Classifier
- 365-day timer
Some options may not be available for aftermarket installation. Please consult factory.
Manuals
Latest product documents only. For older product documentation, please contact our customer service department.
Construction
Speed-display cabinet
Aluminum sheet construction
Dust- and weather-resistant, comparable with NEMA 4 (IP54)
Powder-coated and oven-baked
Battery box
Aluminum sheet construction
Brushed aluminum surface
Sign
Aluminum sheet
Type 3 high-intensity reflective surface
Small sign
Pixel matrix
12 × 10 pixels, W × H
34 mm pitch
Font
One font, 13 in (33 cm) high,
characters vary in width
Speed display
One or two digits, 5 to 99 mph
Two or three digits, 10 to 170 km/h
Units are selectable
Large sign
Pixel matrix
24 × 20 pixels, W × H
34 mm pitch
Font
One bold font, 26 in (66 cm) high,
characters vary in width
Speed display
One or two digits, 5 to 99 mph
Two or three digits, 10 to 170 km/h
Units are selectable
Power
Commercial power option
Hard-wired to commercial AC power
Input, 85 to 270 Vac, 5A
Output 12.8 Vdc
Battery/solar option
12 Vdc battery power
70 Ah battery capacity
Solar charging system

Specifications subject to change without notice.
