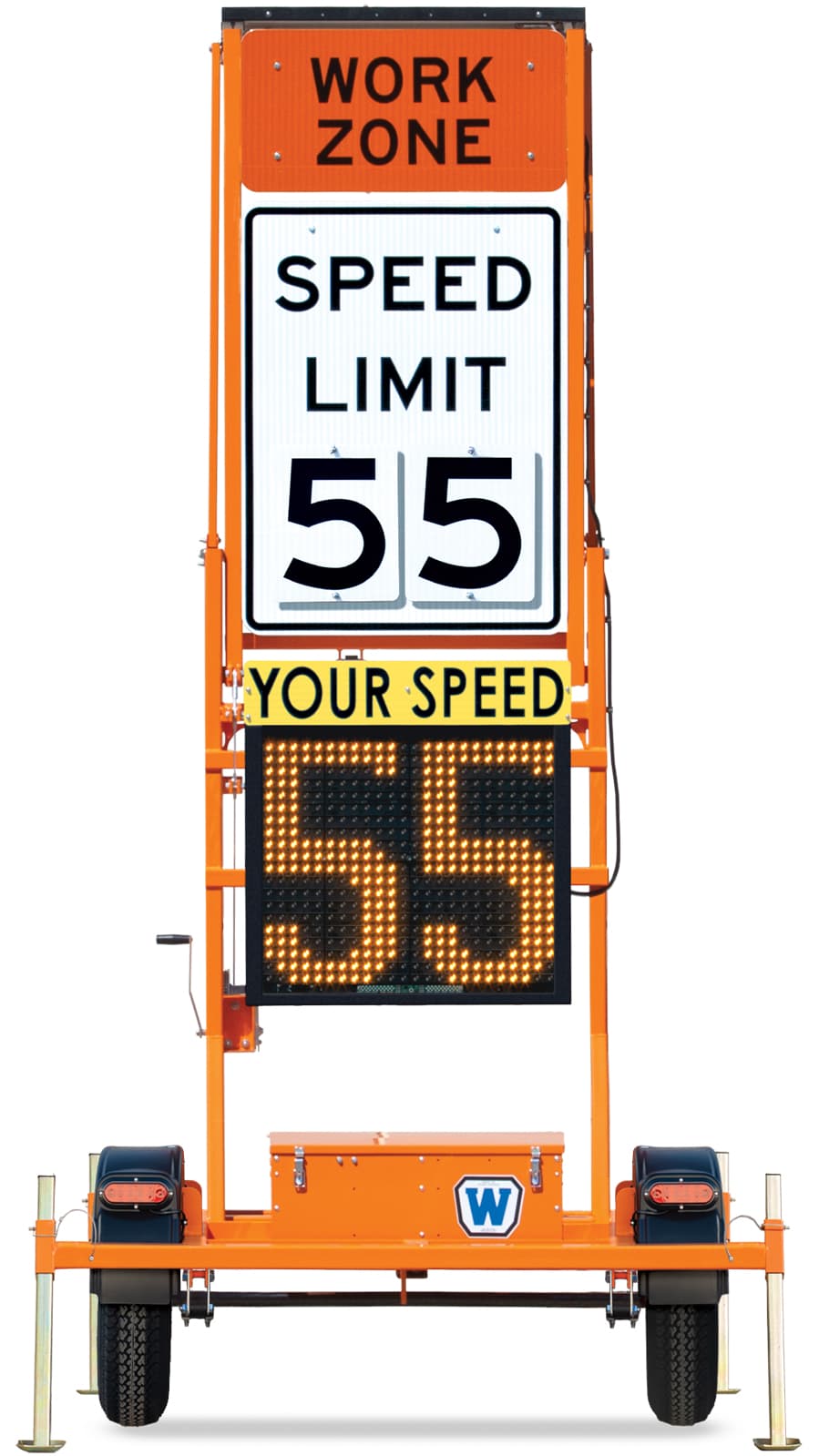

The Wanco Folding Frame Radar-Speed Trailers feature a large full-matrix LED display, oversize speed limit sign, and work zone sign. The display shows vehicle speed in bold 26-inch characters, warning motorists to slow down by flashing their excessive speed. Two trailer sizes accommodate large regulatory signs on a folding-frame design that pivots the signs up to the vertical position when deployed, and down to horizontal for transport. The signs frame is held in place with a single support that ensures ease of use and prevents damage.
Features
- Large trailer provides high visibility
- Ideal for highways and other high-speed arterials
- LED visors produce superior visibility
- Energy-efficient operation results in long run times
- Simple and easy transport and deployment
Setup
- Portable system is easy to transport and deploy
- Large regulatory speed-limit sign has changeable speed numbers
- Selectable speed-limit setting
- Configurable flashing excessive-speed message
- Configurable speed units, mph or km/h
- Heavy-duty hand-winch with safety brake raises regulatory signs frame for deployment
- Single locking device secures frame in place during operation and transport
Operation
- Extra-large electronic speed display with full matrix of LEDs
- Lenses and shades over LEDs produce superior visibility
- Display visible over standard Jersey barrier traffic divider
- Display flashes when a vehicle exceeds speed limit
- Clearly displays speed in up to three digits
- Radar unit is FCC approved, CE compliant
- Extended height increases visibility
- Regulatory work zone sign above speed limit sign
- Weather-resistant control box cover has lockable latches
- See-through design puts road workers in view
Power System
- Battery powered and solar charging
- Energy-efficient operation results in long run times
- Solar panel charges batteries automatically without intervention
- Charging system shuts down when batteries are fully charged, preventing damage
- Unique system allows battery charging with solar panels or commercial power
- Cooling fan protects battery charger from overheating
- Battery box can be locked to prevent unauthorized access
Maintenance
- Individual display modules can be replaced easily
- Standard trailer tires
- Heavy-duty bolt-on fenders can be replaced if damaged
- Durable powder-coat finish resists the elements
Options
Controller
- Touchscreen controller
Flashers & beacons
- Red-and-blue flashers
- White flashers
- PAR 46 beacons
- 8-inch signal lights
- 12-inch signal lights
- Strobe lights
Power
- Choice of battery types and configurations
- Additional solar
- 45-amp battery charger
Tow hitch
- Combo-hitch for 2-inch ball and 2 1/2-inch pintle hook
- Standard lunette ring for 2 1/2-inch pintle hook
- Heavy-duty lunette ring for 3-inch pintle hook
Other options
- High-security battery box
- Wheel lock
Some options may not be available for aftermarket installation. Please consult factory.
Manuals
Latest product documents only. For older product documentation, please contact our customer service department.
Weight
48 × 60 inch model
Approx. 1300 lb (590 kg)
36 × 48 inch model
Approx. 1170 lb (531 kg)
Construction
Trailer
MIG-welded steel tubing
Speed-display cabinet
Aluminum sheet construction
Dust- and weather-resistant, comparable with NEMA 4 (IP54)
Coating
Powder-coated and oven-baked
Tires
ST205/75D15
Display
Pixel matrix
24 × 20 pixels, W × H
34 mm pitch
Font
One bold font, 26 in (66 cm) high,
characters vary in width
Speed display
One or two digits, 5 to 99 mph
Two or three digits, 10 to 170 km/h
Units are selectable
Power
Batteries
Four 6 Vdc Group 24 deep-cycle batteries, wired for a 12-volt system
Battery capacity
430 Ah total
Solar panel
One 85 W panel
Regulatory signs - 48 × 60 model
Speed limit sign
48 × 60 in (122 × 152 cm), W × H
R2-1 regulatory speed limit sign with
interchangeable speed limit numbers
Work zone sign
48 × 20 in (122 × 51 cm), W × H
Alternative signs are optional; contact factory
Material
Aluminum sheet, 0.080 in (2 mm) thick, with high-intensity reflective coating
Regulatory signs - 36 × 48 model
Speed limit sign
36 × 48 in (91 × 122 cm), W × H
R2-1 regulatory speed limit sign with
interchangeable speed limit numbers
Work zone sign
36 × 18 in (91 × 46 cm), W × H
Alternative signs are optional; contact factory
Material
Aluminum sheet, 0.080 in (2 mm) thick, with high-intensity reflective coating

Specifications subject to change without notice.
